ECG Socket Plug And Socket Connectors PPS Insulator Avoid Cross Iterface For Aviation

Name: ECG Socket Plug And Socket Connectors PPS Insulator Avoid Cross Iterface For Aviation
Brand: RAYMO
Price: 1 USD

ECG Socket Plug And Socket Connectors PPS Insulator Avoid Cross Iterface For Aviation Manufactures

Brand Name : RAYMO

Model Number : FGG EGG

Certification : SGS, RoHs2.0 CE ISO:9001-2015

Place of Origin : Shenzhen, China

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, PAYPAL, EBAY

Supply Ability : 5000Pieces/ Week

Delivery Time : 5-7working days

Packaging Details : Plastic Bag & Carton

Prct Name : Push Pull Circular Aviation Connector

Shell size : 0B 1B 2B 3B 4B

Contact no. : 5PIN

Shell material : Brass shell with chrome plated

Insulator : PPS

Application : aviation connector

Contact Now

Circular push pull connector prcts ECG socket

can be 100% compatible with origina LEMO ECG SOCKET connectors
push pull locking system
plastic connector
4pin male cable connector ,
used for aviation

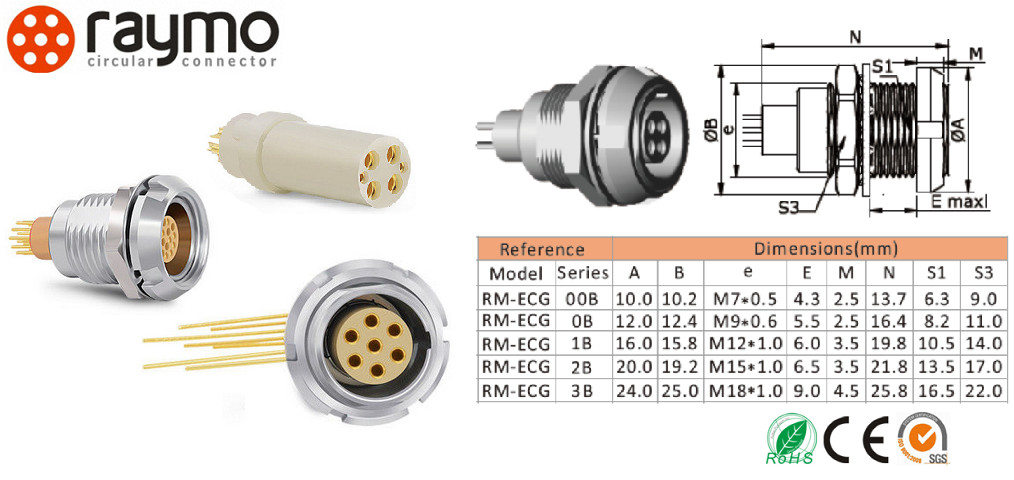

Connector Details table

P/N .	ECG.0B.305.CLL
Description	Circular Push Pull Connector socket
Characteristics
1	Secure high performance push-pull Self-locking system
2	IP50
3	1 key, and 2 key/channels with 30°,40°,60°,80° to avoid cross-iterface
4	multipole types 2 to 32 contacts
5	High pin density contributing to equipment miniaturization
6	Shock resistant designs
7	Functional in a wide temperature range from -65°C to +200°C
8	Solder, crimp or print contacts (straight or elbow)
9	360° screening for full EMC shielding

Technical Characteristics

Pulling and inserting times : ＞5000 times
Humidity : Maximum humidity up to 95% at a temperature of 60 °
Resistance to vibrations: 15 g [10 Hz - 2000 Hz]
Shielding (min): > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
Shock Resistance : 100 g [ 6 ms]
Protention Level : IP50
Salt Cpray Corrosion test: ＞96Hrs
Terminal Type: solder
Number of positions: 1-32pins
Fastensing Type: Push pull
Shell Material : Brass
Shell Colour : natural and blacl chrome plated
Contact Material: Brass
Insert Material : PPS , PEEK

RAYMO Company Intrce

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.

Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system. Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.

PHOTOS

ECG Socket Plug And Socket Connectors PPS Insulator Avoid Cross Iterface For Aviation

Raymo Exhibition is coming soon

2020.11 Electronica Munich, Germany
2019.9. Testing Expo, Shanghai
2018.11 Electronica Munich, Germany

ECG Socket Plug And Socket Connectors PPS Insulator Avoid Cross Iterface For Aviation

RAYMO Prcts Applicaiton

Medical imaging
Scientific research,Automation,Test & measurement
Avionics,Transport
Communication systems, Defense & Security
High Speed Camera
Batteries
Weatherproof applications

RAYMO Certificate

RoHS 2.0
CE
SGS
ISO:9001-2015
Reach

Why Choose Raymo as a supplier?

Easy mating, can be blind-mated guiding mechanism ensures precise alignment
Increased safety and user friendliness mechanical and color coding prevent misconnection
Increased equipment life span guiding mechanism optimally protects the contacts
Robust and shock resistant designs ideal for equipment used in the field
High performance connectors designed and tested to withstand extreme conditions
Sealed up to IP50 and corrosion resistant usable underwater
Sterilizable ideal for medical applications
Functional in a wide temperature range from -65°C to +200°C

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
